Eclipse Tips: Debugging XML June 28, 2013

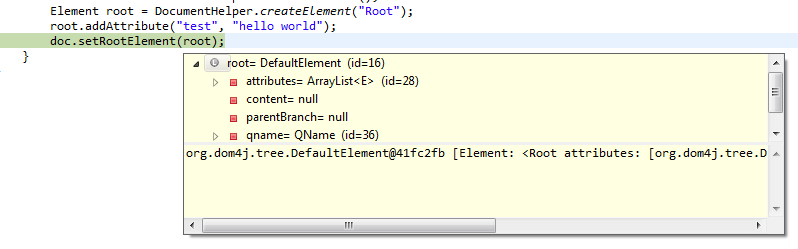

When using dom4j objects in Eclipse, it is sometimes hard to determine what the contents of a particular Document or Element are:

Step into code that uses an Element, Document, etc

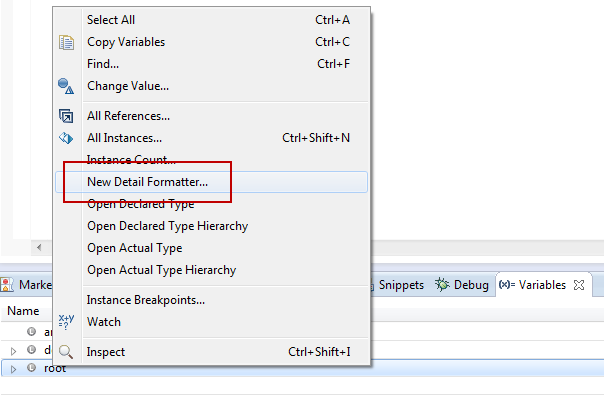

Open the Variables view, right click on the object, and select “New Detail Formatter”:

Enter the following code:

java.io.StringWriter sw = new java.io.StringWriter();
org.dom4j.io.OutputFormat format = org.dom4j.io.OutputFormat.createPrettyPrint();
org.dom4j.io.XMLWriter writer = new org.dom4j.io.XMLWriter( sw, format );
writer.write(this);
return sw.toString();

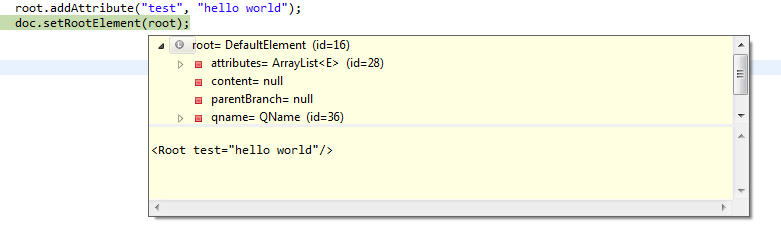

Click OK. You will now see a more readable format for your Dom4j objects:
